📋 Executive Summary
This comprehensive guide examines current renal imaging modalities including CT, ultrasonography, arterial duplex studies, nuclear medicine, and MRI. Key updates include the evolution from contrast-induced to contrast-associated nephropathy terminology, enhanced Mehran risk stratification protocols, validated hydration strategies, and evidence-based contrast agent selection guidelines.
🔑 Key Paradigm Shifts
Contrast-associated vs contrast-induced nephropathy; Mehran risk-based prevention protocols
📊 Evidence Level
2024-2025 guidelines, validated risk scores, randomized controlled trials
🎯 Clinical Focus
Risk stratification, optimal protocols, contrast selection, cost-effectiveness

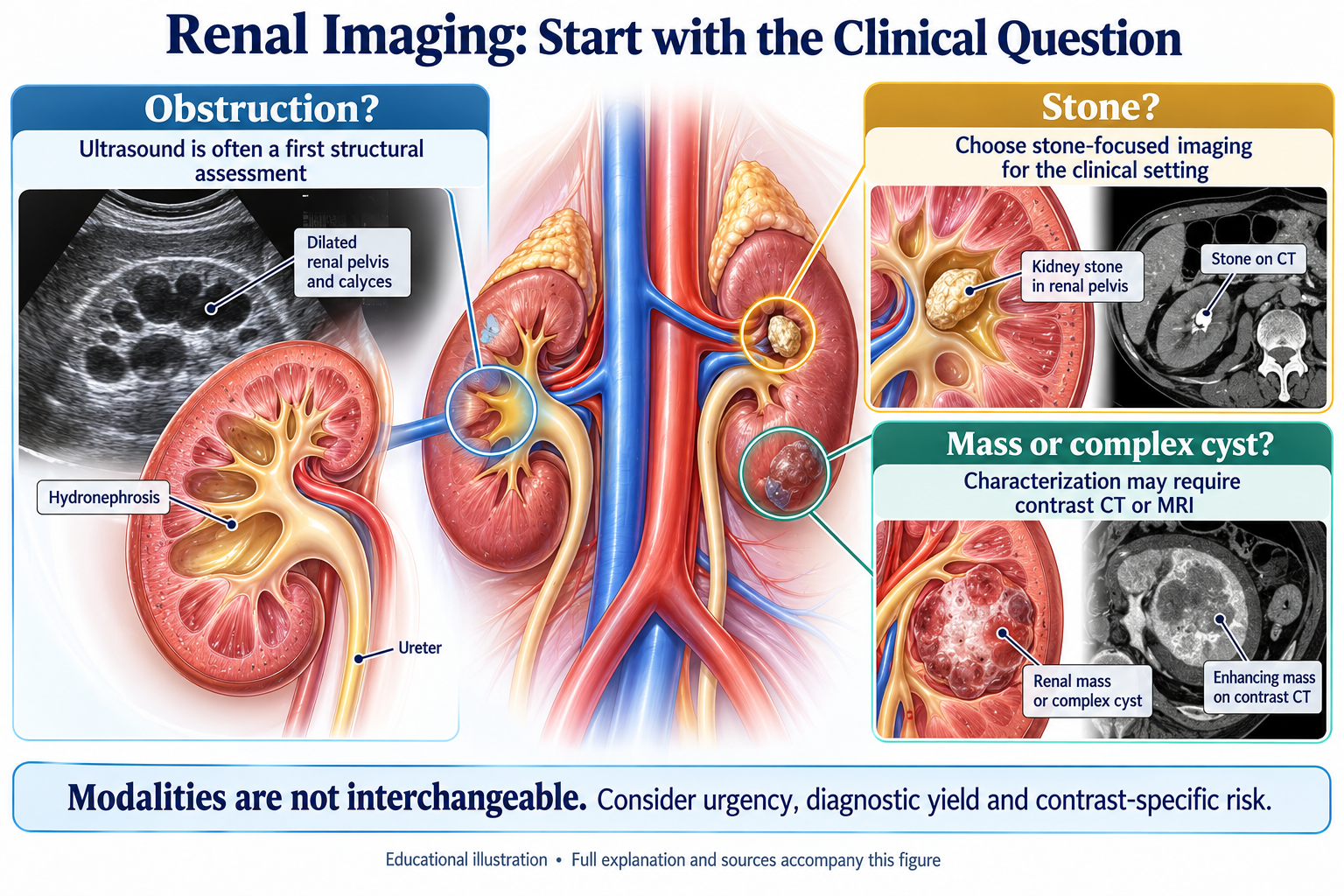

🎯 Clinical Applications Overview
Renal imaging provides essential anatomical and functional information for nephrology, urology, and emergency medicine. Modern practice requires understanding optimal imaging selection, contrast protocols, and evolving safety considerations.
- Stone Disease: CT stone protocols, dual-energy applications
- Mass Evaluation: Bosniak classification, enhancement patterns
- Vascular Assessment: RAS detection, transplant evaluation
- Functional Imaging: Nuclear medicine, advanced MRI techniques
- Emergency Applications: Point-of-care ultrasound, trauma protocols
🔬 Evidence-Based Methodology
This synthesis follows systematic review methodology consistent with Cochrane and PRISMA standards, focusing on high-quality evidence from 2015-2025.
- Database Sources: PubMed, EMBASE, Cochrane Central
- Study Types: RCTs, meta-analyses, expert consensus
- Quality Assessment: Risk of bias evaluation, sample sizes
- Recent Guidelines: ACR, KDIGO, professional societies
- Clinical Relevance: Practical application focus
💉 Comprehensive Contrast-Associated Nephropathy (CAN) Prevention
📋 Critical Terminology Evolution
❌ OLD: Contrast-Induced Nephropathy (CIN)
Legacy terminology implying direct causation by contrast alone.
- Assumed contrast as sole cause
- Overestimated true incidence
- Led to unnecessary contrast avoidance
✅ NEW: Contrast-Associated Nephropathy (CAN)
Modern terminology acknowledging multifactorial association with contrast exposure.
- Recognizes multifactorial causation
- More accurate risk assessment
- Evidence-based prevention strategies
🧮 Mehran Risk Score - Validated CAN Prediction Tool
📊 Complete Risk Factor Scoring System
Patient Factors
| Age >75 years | 4 points |
| Diabetes mellitus | 5 points |
| Heart failure | 5 points |
| Baseline Cr >1.5 mg/dL | 4 points |
| Anemia (Hct <39% M, <36% F) | 3 points |
Procedural Factors
| Urgent procedure | 2 points |
| IABP use | 5 points |
| Contrast volume ratio >3* | 4 points |
| Hypotension | 5 points |
*Contrast volume (mL) ÷ eGFR (mL/min/1.73m²)
🎯 Risk Stratification & Clinical Actions
Low Risk (≤5 points)
CAN: 7.5% | Dialysis: 0.3%
Standard hydration adequate
Moderate Risk (6-10)
CAN: 14.0% | Dialysis: 0.9%
Enhanced hydration + monitoring
High Risk (11-16)
CAN: 26.1% | Dialysis: 3.1%
Comprehensive prevention protocol
Very High Risk (>16)
CAN: 57.3% | Dialysis: 12.6%
Maximum prevention + consider alternatives
💧 Evidence-Based Hydration Protocols
🏆 Gold Standard: 24-Hour Protocol (Class I, Level A Evidence)
Pre-Procedure
1 mL/kg/hr × 12h
Isotonic saline (0.9% NaCl)
During Procedure
1 mL/kg/hr
Continue at same rate
Post-Procedure
1 mL/kg/hr × 12h
Total 24-hour protocol
Strongest Evidence Base - Preferred for High-Risk Patients
⚡ Validated Alternative: Rapid Protocol (Class IIa, Level B Evidence)
Pre-Procedure
3 mL/kg/hr × 1h
Isotonic saline rapid loading
During Procedure
1 mL/kg/hr
Standard maintenance rate
Post-Procedure
1 mL/kg/hr × 6h
Shorter post-procedure duration
Non-Inferior for Urgent Procedures - Validated in Multiple RCTs
📋 Protocol Selection Guidelines
Use 24-Hour Protocol When:
- Elective procedures (time permits)
- Very high-risk patients (Mehran >16)
- Previous CAN history
- Advanced CKD (eGFR <30)
Use Rapid Protocol When:
- Urgent procedures (ACS, stroke)
- Heart failure concerns with volume
- Logistical constraints
- Moderate risk patients (Mehran 6-16)
🧪 Evidence-Based Contrast Agent Selection
High-Osmolar (Discontinued)
| Osmolality: | >1400 mOsm/kg |
| Examples: | Diatrizoate |
| CAN Risk: | Up to 30% |
| Status: | Contraindicated |
| Mechanism: | Severe osmotic injury |
Low-Osmolar (Standard)
| Osmolality: | 300-320 mOsm/kg |
| Examples: | Iohexol, Iopamidol |
| CAN Risk: | 5-15% |
| Status: | Standard of care |
| Cost: | Moderate, widely available |
Iso-Osmolar (Optimal)
| Osmolality: | ~290 mOsm/kg |
| Examples: | Iodixanol (Visipaque) |
| CAN Risk: | 2-8% |
| Status: | Premium choice |
| Cost: | 3-4× more expensive |
💰 Cost-Effectiveness Analysis
Low Risk (Mehran ≤5)
Recommendation: Low-osmolar contrast
Rationale: Cost-effectiveness favors standard agents (<2% baseline risk)
Moderate Risk (6-10)
Recommendation: Low-osmolar + enhanced protocols
Alternative: Consider iso-osmolar if multiple risks
High/Very High Risk (>10)
Recommendation: Iso-osmolar contrast
Justification: 40-50% relative risk reduction justifies cost
Cost Analysis: Preventing one dialysis case (~$70,000/year) justifies iso-osmolar contrast cost (~$200-300/procedure)
🔬 Mechanistic Superiority of Iso-Osmolar Contrast
Low-Osmolar Contrast (300-320 mOsm/kg)
- Creates osmotic gradient vs blood (290 mOsm/kg)
- Causes cellular dehydration
- Increases blood viscosity
- Red blood cell aggregation in microvasculature
- Medullary hypoxia and tubular injury
Iso-Osmolar Contrast (~290 mOsm/kg)
- Matches blood osmolality
- Minimal osmotic stress
- Preserved cellular hydration
- Reduced red cell aggregation
- Better preservation of renal perfusion
📈 Post-Procedural Monitoring & Recovery
Immediate (0-24h)
- Continue post-procedure hydration
- Monitor urine output (>0.5 mL/kg/hr)
- Assess volume status
- Avoid nephrotoxins
24-72 Hours
- Creatinine at 24h and 48h
- Peak injury typically 72h
- Electrolyte monitoring
- Recovery assessment
CAN Definition
- ≥0.5 mg/dL absolute increase OR
- ≥25% relative increase
- Within 48-72 hours
- Exclude other causes
💻 Computed Tomography Renal Imaging
🎯 Non-Contrast CT Applications
🔬 Stone Protocol CT
- Low-Dose Protocols: ~3 mSv effective dose
- Dual-Energy CT: Stone composition analysis
- Clinical Scoring: STONE score integration
- Secondary Signs: Hydronephrosis, perinephric stranding
- Reformation Capability: Coronal and sagittal views
🔑 Clinical Use Key
First-line for suspected nephrolithiasis • Replaces IVU • Emergency department standard • Pregnancy contraindication
💉 Contrast-Enhanced CT
- Single-Phase: Nephrographic phase at 80-100s
- Multiphasic: Arterial, nephrographic, delayed phases
- Mass Characterization: Enhancement >20 HU significant
- Vascular Assessment: CT angiography protocols
- Functional Information: Delayed excretory imaging
🔑 Clinical Use Key
Essential for mass evaluation • Bosniak cyst classification • Vascular imaging • Functional assessment • Risk-benefit required
⚖️ CT vs Ultrasonography: Clinical Comparison
🔍 Hydronephrosis Detection
CT: 95-98% sensitivity, superior for mild dilatation
US: 70-90% sensitivity, operator-dependent
🏥 Retroperitoneal Fibrosis
CT: >90% sensitivity, definitive diagnosis
US: <50% sensitivity, limited utility
📏 Renal Size Assessment
CT: <5% variability, standardized
US: Variable accuracy, operator-dependent
🫧 Cystic Lesions
CT: 95% sensitivity, Bosniak classification
US: Limited complex feature assessment
🎯 Solid Masses
CT: >95% sensitivity, enhancement assessment
US: 60-85% sensitivity, no enhancement
⚡ Clinical Decision
CT for definitive diagnosis; US for screening, pregnancy, pediatrics
🔊 Renal Ultrasonography
Radiation-free imaging with real-time capability, ideal for screening and serial monitoring. Point-of-care applications expanding in emergency medicine.
- POCUS Applications: Comparable to CT for hydronephrosis
- Advantages: No radiation, bedside availability, real-time
- Limitations: Operator dependence, obesity challenges
- CEUS Emerging: Microbubble contrast without nephrotoxicity
- Elastography: Tissue stiffness assessment
🌊 Renal Arterial Duplex
Primary non-invasive screening for renal artery stenosis with moderate diagnostic accuracy when optimal conditions achieved.
- Diagnostic Criteria: PSV >200 cm/s, RAR >3.5
- Performance: 85-92% sensitivity, 85-95% specificity
- CEDUS Enhancement: Improved with microbubble contrast
- In-Stent Restenosis: Modified thresholds (PSV >395 cm/s)
- Clinical Integration: Part of comprehensive RAS assessment
🎓 Clinical Decision Support Tools
💻 Enhanced Mehran Risk Calculator
☢️ Nuclear Medicine Renal Scintigraphy
Functional imaging providing unique physiological information complementing anatomical modalities.
💊 Dynamic Renography
Tc-99m MAG3: Superior to DTPA
F+20 Protocol: Furosemide at 20 minutes
Criteria: T1/2 <10min (normal), >20min (obstruction)
💉 Captopril Renography
Application: Renovascular hypertension
Mechanism: Post-ACE inhibition changes
Utility: Diminished with improved cross-sectional imaging
🎯 DMSA Scintigraphy
Application: Cortical scarring, pyelonephritis
Advantage: Superior to US for scarring
Primary Use: Pediatric populations
🧲 Magnetic Resonance Imaging
Excellent soft tissue contrast without ionizing radiation, expanding applications in renal imaging.
- Non-Contrast Techniques: DWI, TOF-MRA, bSSFP sequences
- Functional MRI: BOLD imaging, arterial spin labeling
- Contrast-Enhanced: Dynamic enhancement protocols
- MR Elastography: Quantitative fibrosis assessment
- Group II GBCA Safety: Safe even in advanced CKD
🚀 GBCA Revolutionary Guidelines: Group II Safety
⚠️ Group I (Highest Risk)
Agents: Omniscan, Magnevist, OptiMARK
Status: Contraindicated in advanced CKD
✅ Group II (Lowest Risk)
Agents: ProHance, Dotarem, Gadavist
Status: Safe even in advanced CKD/dialysis
❓ Group III (Unknown Risk)
Status: Intermediate/unknown NSF risk
Approach: Careful risk-benefit assessment
🎯 Clinical Game-Changer
Group II agents: No unconfounded NSF cases in >4,900 administrations to patients with eGFR <30 mL/min/1.73m²
🎯 Conditions REQUIRING Contrast
- Renal Mass Characterization: Enhancement pattern assessment
- Complex Cystic Lesions: Bosniak classification
- Vascular Imaging: CT/MR angiography
- Pre-operative Planning: Surgical anatomy
- Functional Assessment: GFR measurement, perfusion
🚫 Conditions NOT Requiring Contrast
- Urolithiasis Evaluation: Non-contrast CT sufficient
- Hydronephrosis Assessment: US or non-contrast CT
- Renal Size/Echogenicity: Ultrasound adequate
- Post-operative Complications: Often non-contrast sufficient
- Serial Monitoring: US preferred for repeated assessments
🎯 Clinical Conclusions
Contemporary renal imaging requires comprehensive understanding of multiple modalities, each offering distinct clinical advantages. The paradigm shift from contrast-induced to contrast-associated nephropathy reflects improved understanding of post-procedural renal dysfunction causality and enables more precise risk stratification using validated tools like the Mehran score.
Key Practice Changes: Enhanced CAN prevention protocols with evidence-based hydration strategies, risk-stratified contrast agent selection, liberalized Group II GBCA guidelines, and cost-effectiveness analysis enable appropriate imaging utilization while optimizing patient safety. Future developments in AI applications and personalized risk assessment will continue refining clinical practice toward evidence-based, individualized approaches.
