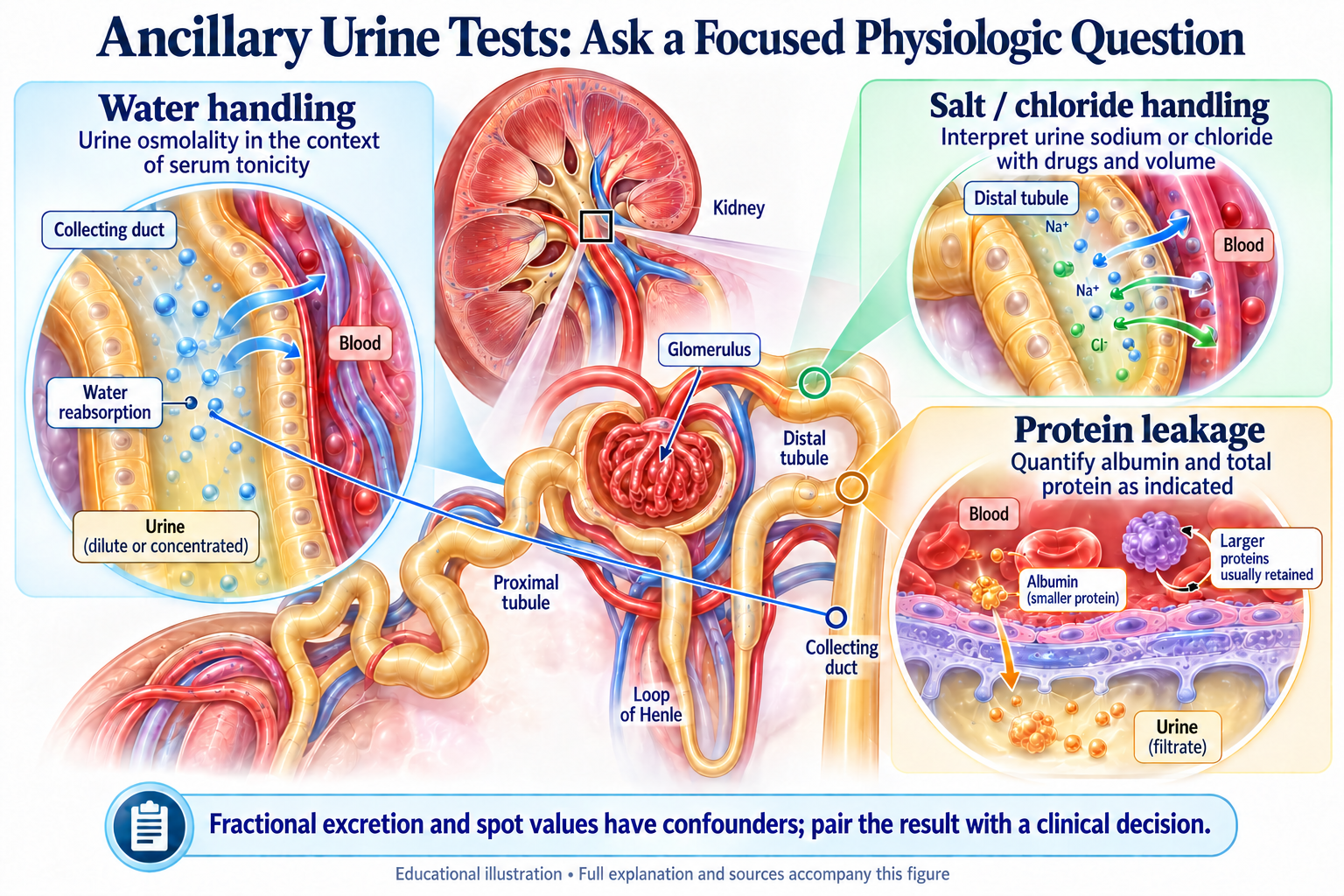

πŸ”¬ Ancillary Urine Testing

Microscopy, FeNa analysis, and urine eosinophil testing

🦠 UTI Assessment

UTI detection and evidence-based evaluation

πŸ”¬ MICROSCOPY FIRST: The Gold Standard That Can't Be Replaced

🎯 Nephrology Perspective

The dipstick is a screening tool. The microscopy is the diagnosis.

In nephrology, we don't treat dipstick results - we treat what we see under the microscope. The urinalysis without microscopy is like an EKG without the actual tracing.

πŸ”¬ What Microscopy Reveals:

  • Active urinary sediment: RBC casts = glomerulonephritis
  • Infection vs inflammation: Bacteria vs sterile pyuria
  • Acute tubular necrosis: Muddy brown granular casts
  • Crystalluria: Drug-induced, metabolic disorders
  • Contamination assessment: Squamous epithelial cells

🚫 What Dipstick Misses:

  • Cast morphology: Type determines etiology
  • RBC morphology: Dysmorphic vs isomorphic
  • Crystal identification: Specific stone risk
  • Parasite detection: Schistosoma, others
  • Contamination degree: Specimen validity

πŸ“Š Urinalysis Microscopy vs FeNa: Diagnostic Priorities

Urinalysis Microscopy vs FeNa Comparison for AKI Evaluation

Key Teaching Points from This Graphic:

πŸ”¬ Microscopy Priority

Urinalysis microscopy provides immediate, definitive diagnostic information that should be obtained BEFORE calculating FeNa in AKI evaluation.

βš–οΈ FeNa Limitations

FeNa can be misleading in multiple clinical scenarios and should never replace careful microscopic examination of the urinalysis.

🎯 Clinical Integration

The combination of microscopy findings with clinical context provides superior diagnostic accuracy compared to FeNa alone.

πŸ” Systematic Urinalysis Interpretation

πŸ“‹ The Nephrology-Focused Approach

STEP 1: Assess Specimen Quality
Squamous epithelial cells, mixed bacteria, collection method
STEP 2: Microscopy FIRST
RBCs, WBCs, casts, crystals, bacteria - actual pathology
STEP 3: Correlate with Dipstick
Use chemistry to support, not replace, microscopy findings
STEP 4: Clinical Integration
Symptoms, physical exam, labs, imaging in context
STEP 5: Targeted Further Testing
Culture, stone analysis, autoimmune workup as indicated

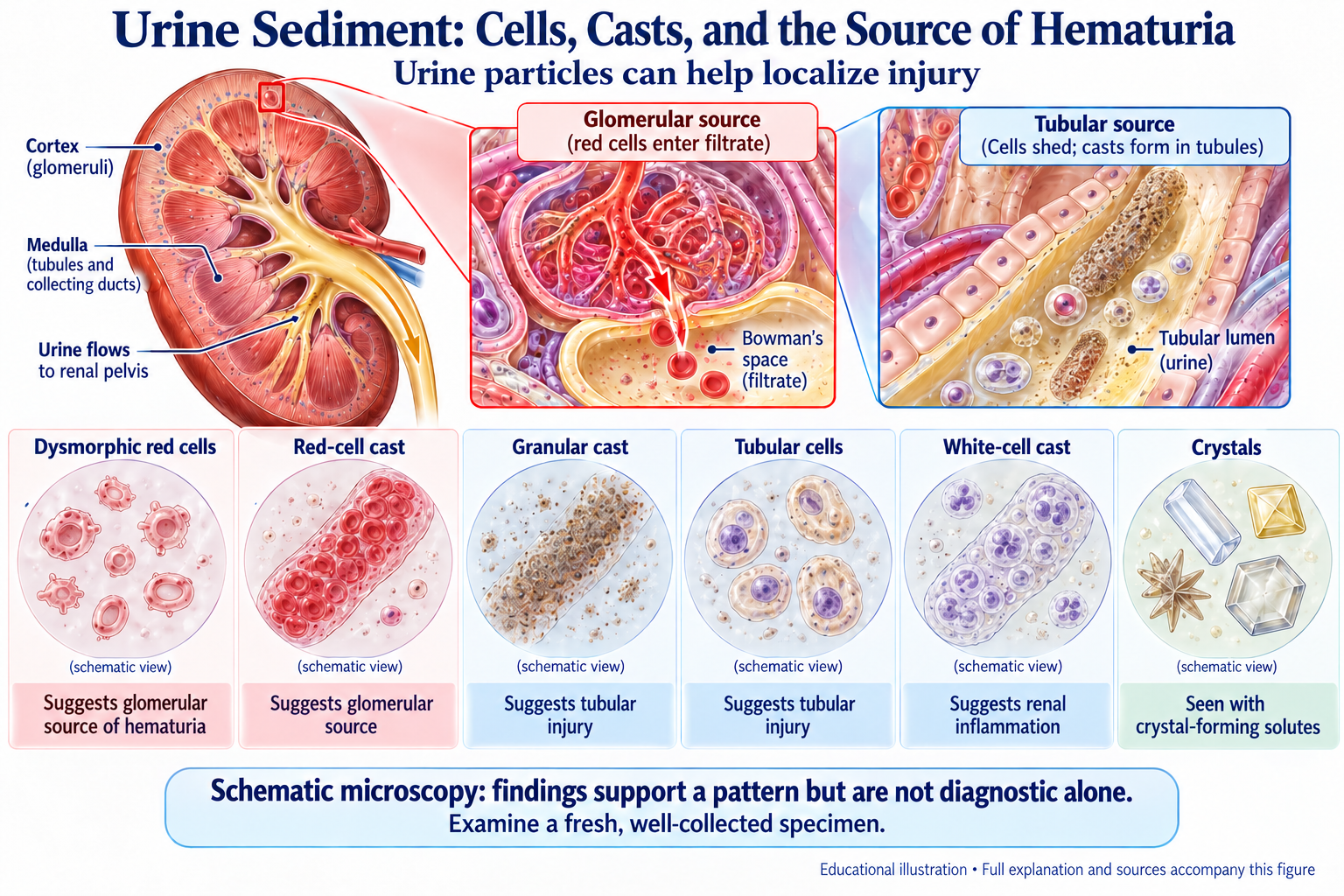

πŸ”¬ Critical Microscopy Findings

πŸ”΄ Red Blood Cells

Morphology Matters Most

  • Dysmorphic RBCs (>80% total OR >5% acanthocytes): Glomerular disease β€” >80% total dysmorphic is the KΓΆhler 1991 threshold; >5% acanthocytes (per KΓΆhler 2002) is the modern more-specific marker. [Reconciled 2026-05-03 across 4 sister files.]
  • Isomorphic RBCs: Lower urinary tract source
  • RBC casts: URGENT - active glomerulonephritis (always contain dysmorphic RBCs)
  • Mixed with proteinuria: Nephritis syndrome
  • Phase contrast: Best for dysmorphism detection
Dipstick Limitation: Cannot distinguish dysmorphic from isomorphic RBCs

βšͺ White Blood Cells

Context Determines Significance

  • With bacteria: Likely infection
  • Sterile pyuria: TB, stones, interstitial nephritis
  • WBC casts: Pyelonephritis or acute interstitial nephritis
  • Eosinophils: POOR test for AIN (sensitivity 30%, specificity 68%, PPV 15%)
  • >50/hpf: Active inflammation/infection
Contamination Alert: Few WBCs with many squamous cells = vaginal contamination

🌟 Casts

The Kidney's Fingerprint

  • RBC casts: Glomerulonephritis (URGENT)
  • WBC casts: Pyelonephritis, AIN
  • Granular casts: ATN, chronic disease
  • Waxy casts: Chronic kidney disease
  • Fatty casts: Nephrotic syndrome
  • Hyaline casts: Normal (if few)
Dipstick Blind Spot: Cannot detect casts - only microscopy reveals them

πŸ’Ž Crystals

pH and Pathology Clues

  • Uric acid: Acidic urine, tumor lysis, gout
  • Calcium oxalate: Hyperoxaluria, ethylene glycol
  • Calcium phosphate: Alkaline urine, hypercalciuria
  • Struvite: Infection with urease producers
  • Cystine: Cystinuria (genetic disorder)
  • Drug crystals: Sulfa, acyclovir, indinavir
Clinical Pearl: Crystal identification guides stone prevention strategies

🦠 CONTAMINATION: The Near-Olympic Sport of Clean Collection

πŸ… The Athletic Challenge of Female Clean Catch

Obtaining a truly uncontaminated urine specimen from a female patient without touching vaginal surfaces requires the coordination, flexibility, and technique of an Olympic gymnast.

EASY

Male clean catch

Generally well-tolerated

MODERATE

Female clean catch, Men with BPH

BPH patients may become "dunkers" with epithelial cell contamination

HARD

Elderly female

High contamination risk

OLYMPIC LEVEL

Obese, elderly female with limited mobility

Frequently requires alternative collection

🧬 Vaginal Flora Contamination

The Usual Suspects:

  • Lactobacillus species (most common)
  • Enterococcus species
  • Coagulase-negative Staphylococcus
  • Ξ±-hemolytic Streptococcus
  • Corynebacterium species
  • Mixed gram-positive flora

Red Flag: >10⁡ CFU/mL of "normal flora" = significant contamination

πŸ” Contamination Indicators

Microscopy Signs:

  • >10 squamous epithelial cells/hpf
  • Mixed bacterial morphology
  • Absence of WBCs despite bacteria
  • Trichomonas organisms
  • Yeast/pseudohyphae
  • Mucus threads

Culture Signs:

  • β‰₯3 different organisms
  • Lactobacillus as predominant organism
  • Low CFU counts of potential pathogens

🎯 When to Abandon Clean Catch

Consider straight catheterization when:

Clinical Urgency
Sepsis, pyelonephritis, complicated UTI requiring immediate definitive diagnosis
Patient Factors
Obesity, limited mobility, cognitive impairment, recurrent contamination
Previous Failures
>2 contaminated specimens, inconclusive results, diagnostic uncertainty

🎯 Mastering the Clean Catch: Practical Guidelines

πŸ‘¨ Male Clean Catch

  1. Retract foreskin (if uncircumcised)
  2. Clean glans with antiseptic wipe
  3. Discard first 20-30mL of urine
  4. Collect midstream in sterile container
  5. Avoid touching container rim or inside
Clinical Note: Generally achieves adequate specimens when properly performed

πŸ‘© Female Clean Catch

  1. Separate labia with non-dominant hand
  2. Clean urethral area front-to-back
  3. Maintain labial separation throughout
  4. Start urination, then collect midstream
  5. Avoid touching container to genital area
Challenge: Requires hand-eye coordination while maintaining sterile technique. Men with BPH may be unable to stop midstream flow, becoming "dunkers" with resulting epithelial cell contamination.

πŸ… The "Olympic Level" Factors

Obesity
Limited reach and visual access to urethral area
Arthritis
Reduced hand dexterity and grip strength
Cognitive Impairment
Difficulty following multi-step instructions
Urgency
Inability to pause midstream collection

πŸ’‘ Alternative Collection Methods

🩹 Straight Catheterization

When: Repeated contamination, clinical urgency, inability to provide clean catch

Advantage: Definitive, uncontaminated specimen

Risk: 1-2% UTI risk from procedure

πŸ§ͺ Suprapubic Aspiration

When: Neonates, research protocols, medico-legal cases

Advantage: 100% sterile specimen

Limitation: Invasive, requires full bladder

⚠️ Common Pitfalls in Urinalysis Interpretation

🚫 Diagnostic Errors

  • Dipstick-only diagnosis: Missing casts and morphology
  • Ignoring contamination: Treating normal flora as pathogens
  • FeNa over-reliance: Missing glomerular disease
  • Delayed microscopy: Cells deteriorate in old specimens
  • Context ignorance: Not considering clinical picture
  • Urine eosinophil reliance: Poor test for AIN (30% sensitivity, 68% specificity)

⏰ Timing Issues

  • Refrigerated delay: Crystal precipitation artifacts
  • Room temperature storage: Bacterial overgrowth
  • Weekend delays: Deteriorated cellular elements
  • First morning void: Concentrated, may show artifacts
  • Post-exercise: Transient proteinuria and hematuria
  • Nitrite timing: <4 hours bladder dwell = false negative

βœ… Quality Assurance

  • Fresh specimens: <2 hours old for optimal microscopy
  • Adequate volume: 10-15 mL minimum for proper testing
  • Proper containers: Sterile for culture, clean for routine
  • Transport conditions: Room temperature or refrigerated
  • Repeat if contaminated: Don't force interpretation
  • Collection timing: Consider nitrite requirements

🚨 Critical Red Flags in UTI Assessment

🦠 Complicated UTI Indicators

  • WBC casts (pyelonephritis)
  • AKI with UTI symptoms
  • Persistent fever despite treatment
  • Recurrent infections in males
  • Unusual organisms (Pseudomonas)

⚠️ Specimen Quality Issues

  • >10 squamous epithelial cells/hpf
  • Mixed bacterial morphologies
  • Low bacterial count with symptoms
  • Lactobacillus predominance
  • Trichomonas or yeast present

🎯 Management Implications

  • Recollect contaminated specimens
  • Consider catheterization if urgent
  • Blood cultures for systemic symptoms
  • Imaging for complicated UTI
  • Nephrology consult for AKI

🎯 Key Learning Points: Urinalysis Interpretation

πŸ”¬ Microscopy Priority

  • Microscopy is diagnostic, dipstick is screening
  • RBC casts = urgent glomerulonephritis
  • Dysmorphic RBCs indicate glomerular disease
  • Fresh specimens (<2 hours) are critical

πŸ“Š FeNa vs Microscopy

  • Microscopy findings should drive decisions
  • FeNa misleading in multiple scenarios
  • Clinical context essential for interpretation
  • Pathology matters more than physiology

🦠 Contamination Awareness

  • Female clean catch is "Olympic-level" difficult
  • >10 squamous cells/hpf = contamination
  • Consider catheterization when clinically urgent
  • Vaginal flora can mimic UTI pathogens

πŸ§ͺ Collection Mastery

  • Proper technique prevents diagnostic errors
  • Patient factors affect collection success
  • Alternative methods when clean catch fails
  • Quality assessment before interpretation

⏰ Dipstick Timing Mastery

  • Nitrites require β‰₯4 hours bladder dwell time
  • First morning void optimal for nitrite detection
  • Frequent urination causes false negative nitrites
  • Timing affects multiple dipstick parameters
