Renal Imaging: Select the Modality for the Question

Clinical Mastery · Visual teaching summary · October 3, 2026

Andrew Bland, MD, FACP, FAAP

Visual summary

Review results, arrange needed follow-up, and ensure that important incidental findings do not disappear between teams.

What question must the image answer?. See the diagram description and full text below.
· Download full-size illustration (PNG) · Download Markdown · Read text version ·

Illustration updated October 18, 2026. Educational schematic. Imaging and microscopy panels are illustrations, not patient studies. Full teaching text and sources follow.

Diagram description

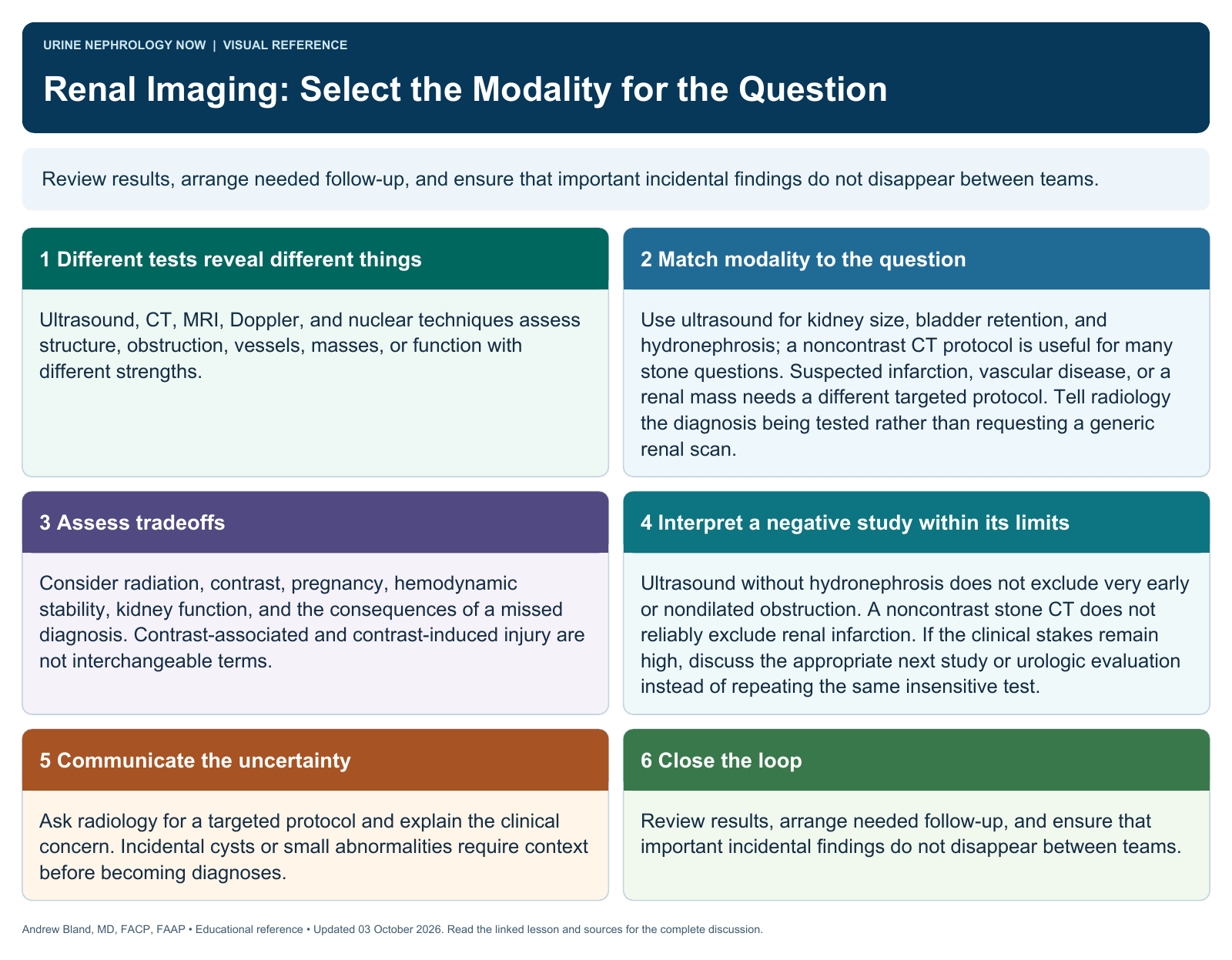

What question must the image answer?. Obstruction? — Ultrasound is often a first structural assessment; Stone? — Choose stone-focused imaging for the clinical setting; Mass or complex cyst? — Characterization may require contrast CT or MRI. Modalities are not interchangeable. Consider urgency, diagnostic yield and contrast-specific risk. The infographic uses anatomical illustrations and integrated labels; the complete teaching text and evidence are below.

Text version

Different tests reveal different things

Ultrasound, CT, MRI, Doppler, and nuclear techniques assess structure, obstruction, vessels, masses, or function with different strengths.

Match modality to the question

Use ultrasound for kidney size, bladder retention, and hydronephrosis; a noncontrast CT protocol is useful for many stone questions. Suspected infarction, vascular disease, or a renal mass needs a different targeted protocol. Tell radiology the diagnosis being tested rather than requesting a generic renal scan.

Assess tradeoffs

Consider radiation, contrast, pregnancy, hemodynamic stability, kidney function, and the consequences of a missed diagnosis. Contrast-associated and contrast-induced injury are not interchangeable terms.

Interpret a negative study within its limits

Ultrasound without hydronephrosis does not exclude very early or nondilated obstruction. A noncontrast stone CT does not reliably exclude renal infarction. If the clinical stakes remain high, discuss the appropriate next study or urologic evaluation instead of repeating the same insensitive test.

Communicate the uncertainty

Ask radiology for a targeted protocol and explain the clinical concern. Incidental cysts or small abnormalities require context before becoming diagnoses.

Close the loop

Review results, arrange needed follow-up, and ensure that important incidental findings do not disappear between teams.
