Renal Anatomy and Physiology: Follow Blood and Filtrate

Student Handouts and Nephrology Primer · Visual teaching summary · October 3, 2026

Andrew Bland, MD, FACP, FAAP

Visual summary

Localize a problem by following blood flow, then filtrate, then the transport process that fails.

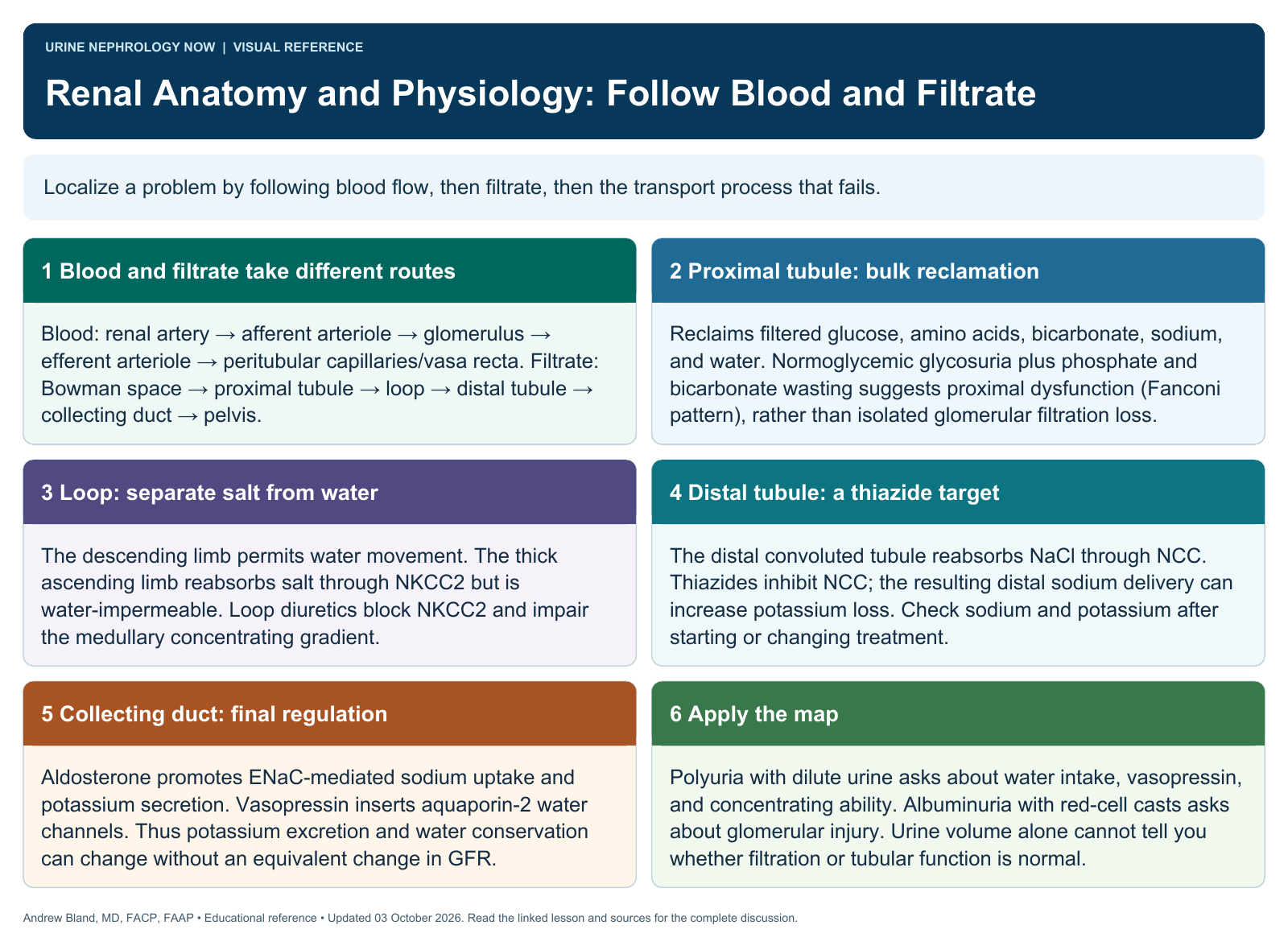

Follow blood and filtrate along different routes. See the diagram description and full text below.
· Download full-size illustration (PNG) · Download Markdown · Read text version ·

Illustration updated October 18, 2026. Educational schematic. Imaging and microscopy panels are illustrations, not patient studies. Full teaching text and sources follow.

Diagram description

Follow blood and filtrate along different routes. Arterioles + glomerulus — Blood enters, is filtered, then exits; Proximal tubule — Bulk reclamation of filtered solutes; Loop of Henle — Salt–water handling supports concentration; Distal / collecting duct — Fine control of salt, potassium, acid and water. Blood stays within vessels; filtrate travels through connected nephron segments. The infographic uses anatomical illustrations and integrated labels; the complete teaching text and evidence are below.

Text version

Blood and filtrate take different routes

Blood: renal artery → afferent arteriole → glomerulus → efferent arteriole → peritubular capillaries/vasa recta. Filtrate: Bowman space → proximal tubule → loop → distal tubule → collecting duct → pelvis.

Proximal tubule: bulk reclamation

Reclaims filtered glucose, amino acids, bicarbonate, sodium, and water. Normoglycemic glycosuria plus phosphate and bicarbonate wasting suggests proximal dysfunction (Fanconi pattern), rather than isolated glomerular filtration loss.

Loop: separate salt from water

The descending limb permits water movement. The thick ascending limb reabsorbs salt through NKCC2 but is water-impermeable. Loop diuretics block NKCC2 and impair the medullary concentrating gradient.

Distal tubule: a thiazide target

The distal convoluted tubule reabsorbs NaCl through NCC. Thiazides inhibit NCC; the resulting distal sodium delivery can increase potassium loss. Check sodium and potassium after starting or changing treatment.

Collecting duct: final regulation

Aldosterone promotes ENaC-mediated sodium uptake and potassium secretion. Vasopressin inserts aquaporin-2 water channels. Thus potassium excretion and water conservation can change without an equivalent change in GFR.

Apply the map

Polyuria with dilute urine asks about water intake, vasopressin, and concentrating ability. Albuminuria with red-cell casts asks about glomerular injury. Urine volume alone cannot tell you whether filtration or tubular function is normal.
