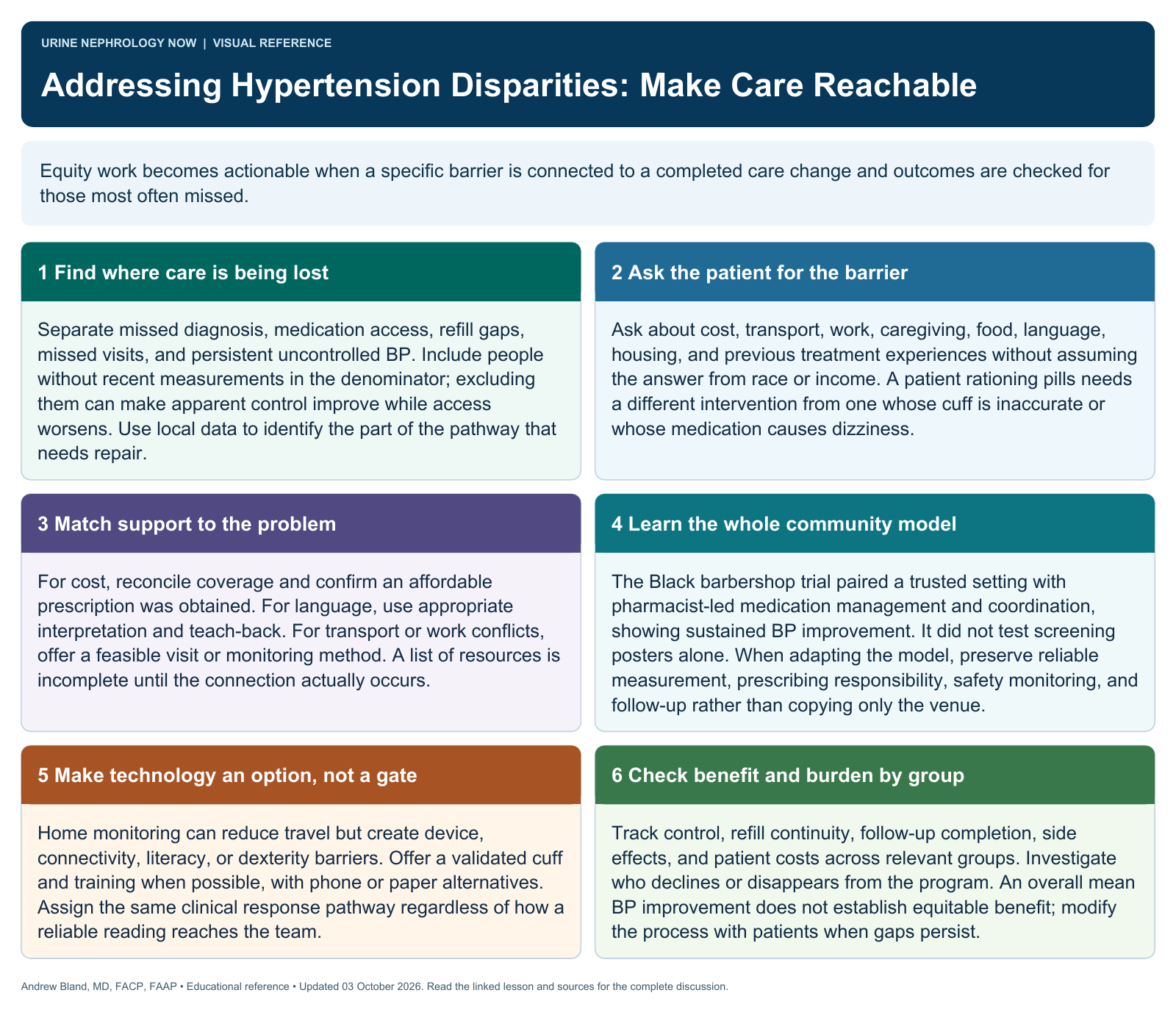

Visual summary
Equity work becomes actionable when a specific barrier is connected to a completed care change and outcomes are checked for those most often missed.
Illustration updated October 18, 2026. Educational schematic. Imaging and microscopy panels are illustrations, not patient studies. Full teaching text and sources follow.
Diagram description
Match support to the point where care is lost. Access to assessment — Transport, cost and appointment barriers; Usable measurement — Device, language and technique support; Obtainable treatment — Affordability and regimen practicality; Continuing follow-up — Offer accessible ways to reconnect. Structural barriers are not biological explanations. Check benefit and burden across groups. The infographic uses anatomical illustrations and integrated labels; the complete teaching text and evidence are below.
Text version
Find where care is being lost
Separate missed diagnosis, medication access, refill gaps, missed visits, and persistent uncontrolled BP. Include people without recent measurements in the denominator; excluding them can make apparent control improve while access worsens. Use local data to identify the part of the pathway that needs repair.
Ask the patient for the barrier
Ask about cost, transport, work, caregiving, food, language, housing, and previous treatment experiences without assuming the answer from race or income. A patient rationing pills needs a different intervention from one whose cuff is inaccurate or whose medication causes dizziness.
Match support to the problem
For cost, reconcile coverage and confirm an affordable prescription was obtained. For language, use appropriate interpretation and teach-back. For transport or work conflicts, offer a feasible visit or monitoring method. A list of resources is incomplete until the connection actually occurs.
Learn the whole community model
The Black barbershop trial paired a trusted setting with pharmacist-led medication management and coordination, showing sustained BP improvement. It did not test screening posters alone. When adapting the model, preserve reliable measurement, prescribing responsibility, safety monitoring, and follow-up rather than copying only the venue.
Make technology an option, not a gate
Home monitoring can reduce travel but create device, connectivity, literacy, or dexterity barriers. Offer a validated cuff and training when possible, with phone or paper alternatives. Assign the same clinical response pathway regardless of how a reliable reading reaches the team.
Check benefit and burden by group
Track control, refill continuity, follow-up completion, side effects, and patient costs across relevant groups. Investigate who declines or disappears from the program. An overall mean BP improvement does not establish equitable benefit; modify the process with patients when gaps persist.
