Obstruction: A Normal Ultrasound Is Not Always the End

Clinical Mastery · Visual teaching summary · October 3, 2026

Andrew Bland, MD, FACP, FAAP

Visual summary

Watch urine output, sodium, potassium, and volume status for postobstructive losses. Functional recovery depends on the duration and severity of prior injury.

Obstruction can occur anywhere along the outflow tract. See the diagram description and full text below.
· Download full-size illustration (PNG) · Download Markdown · Read text version ·

Illustration updated October 18, 2026. Educational schematic. Imaging and microscopy panels are illustrations, not patient studies. Full teaching text and sources follow.

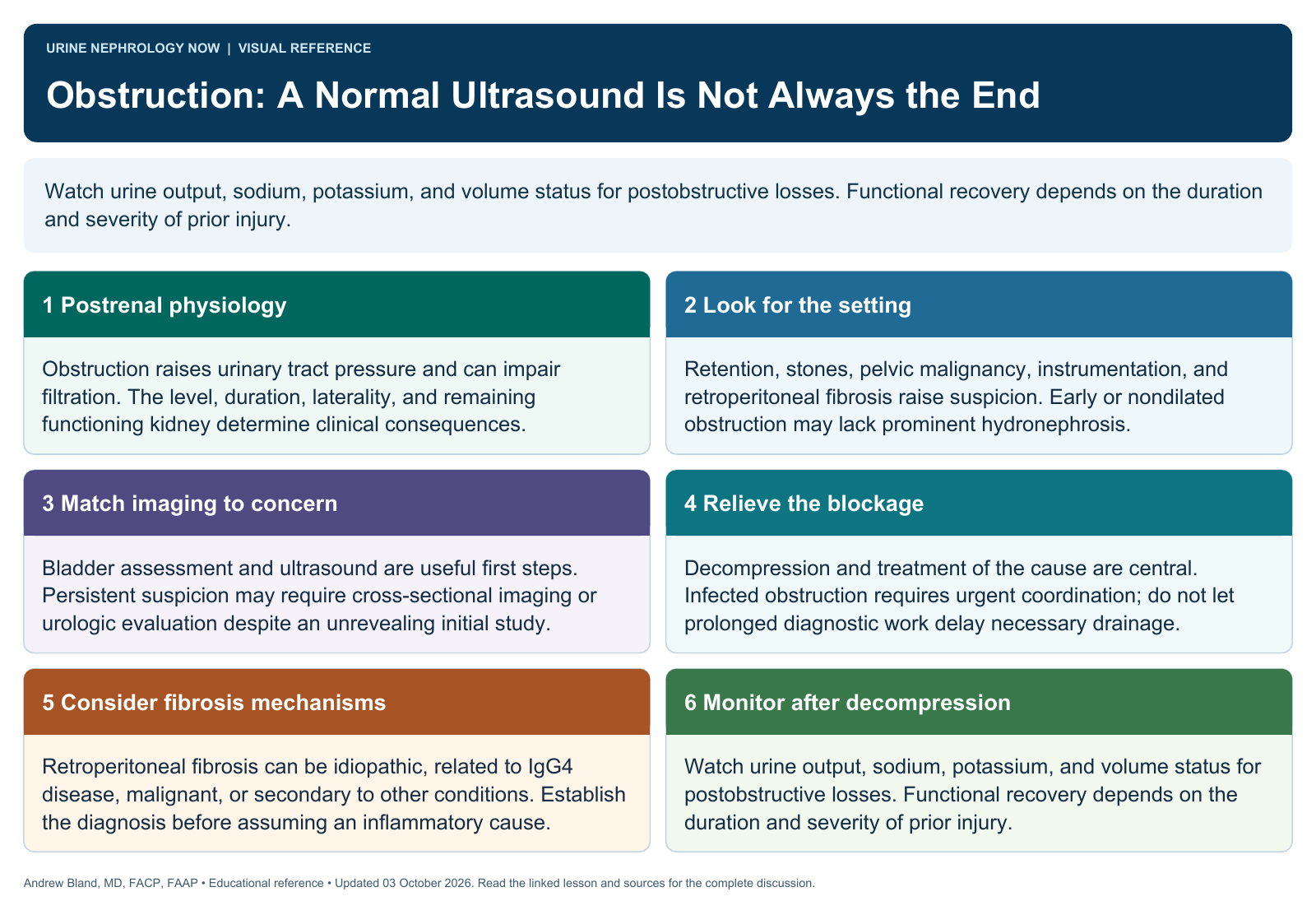

Diagram description

Obstruction can occur anywhere along the outflow tract. . Negative initial imaging does not always settle a high-suspicion case. Monitor urine and electrolytes after relief. The infographic uses anatomical illustrations and integrated labels; the complete teaching text and evidence are below.

Text version

Postrenal physiology

Obstruction raises urinary tract pressure and can impair filtration. The level, duration, laterality, and remaining functioning kidney determine clinical consequences.

Look for the setting

Retention, stones, pelvic malignancy, instrumentation, and retroperitoneal fibrosis raise suspicion. Early or nondilated obstruction may lack prominent hydronephrosis.

Match imaging to concern

Bladder assessment and ultrasound are useful first steps. Persistent suspicion may require cross-sectional imaging or urologic evaluation despite an unrevealing initial study.

Relieve the blockage

Decompression and treatment of the cause are central. Infected obstruction requires urgent coordination; do not let prolonged diagnostic work delay necessary drainage.

Consider fibrosis mechanisms

Retroperitoneal fibrosis can be idiopathic, related to IgG4 disease, malignant, or secondary to other conditions. Establish the diagnosis before assuming an inflammatory cause.

Monitor after decompression

Watch urine output, sodium, potassium, and volume status for postobstructive losses. Functional recovery depends on the duration and severity of prior injury.
