"Resistant Heart Failure" - When Nephrology Hides Behind Cardiology

Enhanced Case-Based Learning with Module Integration

โฑ๏ธ 60-75 min ๐ŸŽฏ Advanced Level ๐Ÿ”— Multi-Module Integration

Integrated Learning Modules

This case integrates content from multiple lecture modules to provide comprehensive learning

๐Ÿ’ง Primary Module: Edema Evaluation

Differential diagnosis of edema, heart failure vs renal causes

๐Ÿ”ฌ Supporting Module: Glomerular Disease

Nephrotic syndrome, membranous nephropathy, proteinuria assessment

๐Ÿงช Supporting Module: Urinalysis

Dipstick interpretation, microscopy, proteinuria quantification

๐Ÿšจ Supporting Module: AKI Recognition

Over-diuresis AKI, hyaline casts, prerenal azotemia

Quick Access to Related Content:

๐Ÿ’ง Edema Evaluation ๐Ÿ”ฌ Glomerular Disease ๐Ÿงช Urinalysis ๐Ÿšจ AKI Recognition

Pre-Case Assessment: Test Your Baseline Knowledge

Answer these questions before reviewing the case to assess your starting knowledge

1

Which laboratory test is NOT included in a standard basic metabolic panel (BMP)?

A) Serum creatinine
B) Serum albumin
C) Blood urea nitrogen (BUN)
D) Serum glucose
Correct Answer: B
Learning Point: The BMP includes electrolytes, glucose, BUN, and creatinine but NOT albumin. Albumin must be ordered separately or as part of a comprehensive metabolic panel (CMP). This is a critical oversight that can delay diagnosis of hypoproteinemic edema.
๐Ÿ“š Reference: BMP Components Review
2

What is the most important initial test to differentiate cardiac from renal causes of edema?

A) Echocardiogram
B) Urinalysis with microscopy
C) B-type natriuretic peptide (BNP)
D) Chest X-ray
Correct Answer: B
Learning Point: A simple urinalysis can detect proteinuria, which immediately suggests renal causes of edema. Dipstick proteinuria โ‰ฅ2+ should prompt evaluation for nephrotic syndrome. This test is rapid, inexpensive, and can prevent misdiagnosis.
๐Ÿ“š Reference: Urinalysis Interpretation
3

What level of proteinuria defines nephrotic range?

A) >1.0 g/day or protein:creatinine ratio >1.0 g/g
B) >2.0 g/day or protein:creatinine ratio >2.0 g/g
C) >3.5 g/day or protein:creatinine ratio >3.5 g/g
D) >5.0 g/day or protein:creatinine ratio >5.0 g/g
Correct Answer: C
Learning Point: Nephrotic range proteinuria is >3.5 g/day or protein:creatinine ratio >3.5 g/g. This threshold is based on historical studies showing that this level of protein loss typically causes hypoalbuminemia and edema. However, some patients develop nephrotic syndrome with lower levels.
๐Ÿ“š Reference: Nephrotic Syndrome Criteria
4

Hyaline casts in the urine sediment most commonly indicate:

A) Acute tubular necrosis
B) Concentrated urine or dehydration
C) Glomerulonephritis
D) Urinary tract infection
Correct Answer: B
Learning Point: Hyaline casts are composed of normal proteins and mucopolysaccharides. They increase with concentrated urine, dehydration, exercise, or fever. In the setting of AKI, they suggest prerenal azotemia from volume depletion or over-diuresis.
๐Ÿ“š Reference: Urine Microscopy Guide

Case Presentation

Patient: 62-year-old female

Chief Complaint: "My heart failure medicine isn't working anymore"

History: 3-month history of progressive bilateral lower extremity edema, increasing shortness of breath, and 20-pound weight gain. Previously well-controlled "heart failure" now seems resistant to escalating diuretic therapy. Patient reports morning facial puffiness (new symptom) and increasing fatigue.

Past Medical History: "Heart failure" (diagnosed 2 years ago), hypertension, hypothyroidism

Current Medications: Furosemide 80mg BID (recently increased from 40mg daily), lisinopril 20mg daily, metoprolol 100mg BID, levothyroxine 75mcg daily

Vitals: BP 158/92, HR 88, Weight 75kg (was 62kg 3 months ago), O2 sat 96% on room air

๐Ÿค” Initial Clinical Reasoning Questions

5

Given this patient's presentation of "resistant heart failure," what is the MOST important initial diagnostic test?

A) Repeat echocardiogram
B) Urinalysis with microscopy
C) B-type natriuretic peptide (BNP)
D) Thyroid function tests
Correct Answer: B
Clinical Reasoning: The new symptom of morning facial puffiness is a red flag for renal disease, specifically nephrotic syndrome. A urinalysis is the quickest way to detect proteinuria, which would completely change the diagnostic approach from cardiac to renal causes of edema.
๐Ÿ“š Reference: Edema Differential Diagnosis

Laboratory Investigation Timeline

Initial Emergency Department Labs

Basic Metabolic Panel (BMP):

  • Sodium: 132 mEq/L
  • Potassium: 3.2 mEq/L
  • Chloride: 98 mEq/L
  • CO2: 30 mEq/L
  • BUN: 48 mg/dL
  • Creatinine: 1.8 mg/dL (baseline 1.0 mg/dL)
  • Glucose: 102 mg/dL

Initial Assessment: AKI with prerenal pattern (BUN:Cr ratio 27:1)

Critical Observation - Urinalysis Results

Dipstick Urinalysis:
  • Protein: 4+ (>500 mg/dL) โš ๏ธ
  • Blood: Negative
  • Glucose: Negative
  • Ketones: Negative
  • Specific gravity: 1.025
  • pH: 6.0
Microscopy:
  • Hyaline casts: 5-10/hpf
  • RBCs: 0-2/hpf
  • WBCs: 2-5/hpf
  • No cellular casts

๐Ÿ“Š Laboratory Analysis Questions

6

The presence of 4+ proteinuria with hyaline casts in this clinical setting suggests:

A) Acute tubular necrosis from over-diuresis
B) Nephrotic syndrome with concurrent prerenal AKI
C) Acute glomerulonephritis
D) Urinary tract infection
Correct Answer: B
Learning Point: The combination of massive proteinuria (4+) with hyaline casts suggests two concurrent processes: underlying nephrotic syndrome causing the edema (not heart failure) and prerenal AKI from aggressive diuretic therapy for presumed "heart failure."
๐Ÿ“š Reference: AKI Recognition and Classification
7

Why was albumin level not checked initially in this patient?

A) The physician forgot to order it
B) Albumin is not included in the basic metabolic panel (BMP)
C) Albumin is not useful in heart failure evaluation
D) The laboratory does not routinely measure albumin
Correct Answer: B
Learning Point: A critical teaching point - the BMP includes electrolytes, glucose, BUN, and creatinine but NOT albumin. Albumin must be specifically ordered or included in a comprehensive metabolic panel (CMP). This common oversight can delay diagnosis of hypoproteinemic edema.
๐Ÿ“š Reference: BMP vs CMP Components

Follow-up Laboratory Studies

Renal Function Panel (RFP) - Ordered After Urinalysis:

Test Value Normal Range Significance
Albumin 2.1 g/dL 3.5-5.0 g/dL Severe hypoalbuminemia
Total Protein 5.8 g/dL 6.0-8.0 g/dL Low normal
Urine Protein:Creatinine 9.2 g/g <0.15 g/g Massive proteinuria
Cholesterol 342 mg/dL <200 mg/dL Severe hyperlipidemia

Diagnostic Revelation Questions

8

With protein:creatinine ratio of 9.2 g/g and albumin of 2.1 g/dL, this patient has:

A) Acute glomerulonephritis
B) Full nephrotic syndrome
C) Isolated proteinuria
D) Minimal change disease
Correct Answer: B
Learning Point: This patient meets all criteria for nephrotic syndrome: proteinuria >3.5 g/g (9.2), hypoalbuminemia <3.0 g/dL (2.1), hyperlipidemia (342 mg/dL), and edema. The "heart failure" was actually nephrotic syndrome all along!
๐Ÿ“š Reference: Nephrotic Syndrome Criteria
9

What is the most likely cause of nephrotic syndrome in a 62-year-old woman?

A) Minimal change disease
B) Membranous nephropathy
C) Focal segmental glomerulosclerosis
D) Diabetic nephropathy
Correct Answer: B
Learning Point: Membranous nephropathy is the most common cause of nephrotic syndrome in adults >50 years old, comprising about 40% of cases. It typically presents with gradual onset and absence of significant hematuria.
๐Ÿ“š Reference: Age-Related Glomerular Disease

Advanced Diagnostics

Renal Biopsy Results

Light Microscopy:

  • Diffuse capillary wall thickening
  • Basement membrane spikes on silver stain
  • No cellular proliferation or crescents
  • Mild tubular atrophy (15%)

Electron Microscopy:

  • Stage II membranous nephropathy
  • Subepithelial electron-dense deposits
  • Basement membrane spikes between deposits
  • Diffuse foot process effacement (80%)

Immunofluorescence:

  • IgG: 3+ granular capillary wall staining
  • C3: 2+ granular staining
  • IgA, IgM: Negative

Serologic Studies

Test Result Normal Significance
Anti-PLA2R Antibody 142 RU/mL <14 RU/mL Strongly positive - Primary membranous nephropathy
ANA 1:80 <1:160 Normal
Complement C3 105 mg/dL 90-180 mg/dL Normal
Hepatitis B & C Negative Negative Rules out viral causes

Module-Specific Deep Dive

10

Why did the patient develop AKI despite having nephrotic syndrome?

A) The underlying glomerular disease caused acute kidney injury
B) Over-diuresis for presumed heart failure caused prerenal AKI
C) Membranous nephropathy always causes rapid kidney function decline
D) Hypoalbuminemia directly damages the kidneys
Correct Answer: B
Deep Dive Learning: This patient was misdiagnosed with heart failure and aggressively diuresed, leading to volume depletion and prerenal AKI. The hyaline casts confirm concentrated urine from dehydration. The underlying membranous nephropathy was causing the edema, not heart failure.
๐Ÿ“š Reference: Prerenal AKI Pathophysiology
11

What is the significance of anti-PLA2R positivity in membranous nephropathy?

A) It indicates secondary membranous nephropathy
B) It confirms primary (idiopathic) membranous nephropathy
C) It predicts rapid progression to kidney failure
D) It rules out the need for immunosuppressive therapy
Correct Answer: B
Deep Dive Learning: Anti-PLA2R antibodies are found in ~70% of primary membranous nephropathy cases and are both diagnostic and prognostic. Higher titers predict slower spontaneous remission and may guide treatment decisions. The antibody level often declines before clinical improvement.
๐Ÿ“š Reference: Membranous Nephropathy Biomarkers
12

How should this patient's diuretic therapy be managed going forward?

A) Continue high-dose furosemide to control edema
B) Reduce diuretics, allow volume repletion, then gentle diuresis
C) Stop all diuretics permanently
D) Switch to a different class of diuretics
Correct Answer: B
Deep Dive Learning: The patient needs volume repletion to reverse the prerenal AKI first. Once kidney function stabilizes, gentle diuresis can be resumed for symptomatic edema relief, but the underlying proteinuria must be addressed with specific therapy for membranous nephropathy.
๐Ÿ“š Reference: Management of Nephrotic Edema

Learning Objectives Assessment

Evaluate your mastery of the key learning objectives from this case

๐ŸŽฏ Learning Objective 1: Recognize the limitations of standard laboratory panels

Objective: Students should understand that the BMP does not include albumin and recognize when additional tests are needed

13

A 45-year-old patient presents with bilateral edema. The BMP shows normal electrolytes and creatinine. What should be your next step?

A) Reassure the patient that kidney function is normal
B) Order urinalysis and serum albumin
C) Start diuretic therapy
D) Order an echocardiogram first
Correct Answer: B
Competency Demonstration: This shows understanding that a normal BMP doesn't rule out renal causes of edema. Albumin and urinalysis are essential to detect hypoproteinemic edema from nephrotic syndrome, even when creatinine is normal.
๐Ÿ“š Master This: Laboratory Test Selection

๐ŸŽฏ Learning Objective 2: Differentiate cardiac from renal causes of edema

Objective: Students should use clinical clues and simple tests to distinguish heart failure from nephrotic syndrome

14

Which clinical finding is most suggestive of renal rather than cardiac edema?

A) Bilateral leg swelling
B) Shortness of breath
C) Morning facial puffiness
D) Elevated jugular venous pressure
Correct Answer: C
Competency Demonstration: Periorbital edema, especially in the morning, is characteristic of hypoproteinemic edema from nephrotic syndrome. Cardiac edema typically starts in dependent areas and is associated with elevated JVP.
๐Ÿ“š Master This: Clinical Assessment of Edema

๐ŸŽฏ Learning Objective 3: Understand the relationship between hyaline casts and prerenal AKI

Objective: Students should interpret urine microscopy findings in the context of volume status

15

A patient with suspected over-diuresis has AKI and hyaline casts on urinalysis. This finding:

A) Rules out prerenal azotemia
B) Supports the diagnosis of prerenal AKI from volume depletion
C) Indicates acute tubular necrosis
D) Suggests glomerulonephritis
Correct Answer: B
Competency Demonstration: Hyaline casts increase with concentrated urine from dehydration or volume depletion, supporting prerenal azotemia. They are benign findings that help distinguish prerenal from intrinsic renal AKI.
๐Ÿ“š Master This: Urine Sediment Interpretation

Integration Challenge

Synthesize knowledge across multiple modules to solve complex clinical problems

16

You see a 58-year-old male with "worsening heart failure" despite optimal cardiac therapy. Urinalysis shows 3+ protein. His BMP shows creatinine 1.4 mg/dL (baseline 1.0), but albumin was not checked. What is your COMPLETE diagnostic approach?

A) Order echocardiogram and increase heart failure medications
B) Order albumin level and start ACE inhibitor
C) Order albumin, lipids, protein:creatinine ratio, and consider nephrology referral
D) Start diuretic therapy and monitor response
Correct Answer: C
Integration Challenge: This requires synthesis across multiple modules: recognizing the BMP limitation (electrolytes), identifying nephrotic syndrome workup (glomerular disease), quantifying proteinuria (urinalysis), and understanding when specialist referral is needed. A complete metabolic evaluation is essential.
๐Ÿ“š Master Integration: Complete Nephrology Curriculum
17

A patient with newly diagnosed membranous nephropathy develops AKI after starting high-dose furosemide. The treatment plan should include:

A) Increase furosemide dose to mobilize edema faster
B) Hold diuretics, volume repletion, then specific nephrotic syndrome therapy
C) Start dialysis immediately
D) Continue diuretics but add albumin infusions
Correct Answer: B
Integration Challenge: This integrates AKI management (recognizing and treating prerenal azotemia), edema pathophysiology (addressing underlying cause), and glomerular disease therapy (treating the root cause of proteinuria rather than just symptoms).
๐Ÿ“š Master Integration: Related Complex Cases

Immunotherapy: Targeting Edema at the Source

Understanding how treating the underlying disease resolves edema more effectively than symptomatic management

18

What is the most effective long-term approach to resolve this patient's edema?

A) Increase furosemide to maximum dose and add metolazone
B) Treat underlying membranous nephropathy with immunosuppressive therapy
C) Albumin infusions with concurrent diuresis
D) Dietary protein restriction and sodium limitation
Correct Answer: B
Treatment Rationale: The edema is caused by massive proteinuria from membranous nephropathy, not volume overload. Treating the underlying glomerular disease to reduce proteinuria will restore albumin levels and resolve edema. Diuretics only provide temporary symptomatic relief.
๐Ÿ“š Reference: Membranous Nephropathy Treatment
19

Given this patient's anti-PLA2R positivity and high-risk features, what is the preferred initial immunosuppressive approach?

A) High-dose corticosteroids alone
B) Rituximab (anti-CD20 monoclonal antibody)
C) Cyclophosphamide and prednisolone (Ponticelli regimen)
D) Calcineurin inhibitor (tacrolimus or cyclosporine)
Correct Answer: B
Treatment Rationale: Rituximab is highly effective in anti-PLA2R positive membranous nephropathy, targeting the B-cells that produce these pathogenic antibodies. Studies show >80% remission rates with rituximab in anti-PLA2R positive patients, with fewer side effects than traditional cytotoxic regimens.
๐Ÿ“š Reference: Anti-PLA2R Directed Therapy
20

How long after starting effective immunosuppressive therapy should this patient expect to see improvement in edema?

A) 1-2 weeks (diuretic effect)
B) 4-6 weeks (acute anti-inflammatory effect)
C) 3-6 months (proteinuria reduction and albumin recovery)
D) 12-18 months (complete histologic resolution)
Correct Answer: C
Treatment Timeline: Immunosuppressive therapy for membranous nephropathy works by reducing anti-PLA2R antibodies and proteinuria over months. Anti-PLA2R levels typically decline first (2-4 months), followed by proteinuria reduction (3-6 months), then albumin recovery and edema resolution (4-8 months). Complete remission may take 6-24 months.
๐Ÿ“š Reference: Treatment Response Timeline
21

What is the best biomarker to monitor treatment response in this anti-PLA2R positive patient?

A) 24-hour urine protein excretion
B) Serum albumin level
C) Anti-PLA2R antibody titer
D) Urine protein:creatinine ratio
Correct Answer: C
Monitoring Rationale: Anti-PLA2R antibody levels are the earliest and most sensitive marker of treatment response in membranous nephropathy. A declining titer predicts clinical improvement months before proteinuria decreases. This allows early assessment of treatment efficacy and guides therapy duration. A negative or very low titer (<20 RU/mL) predicts sustained remission.
๐Ÿ“š Reference: Biomarker-Guided Therapy
22

Why is rituximab particularly effective for edema resolution in anti-PLA2R positive membranous nephropathy compared to other immunosuppressive agents?

A) It has direct anti-inflammatory effects on the glomerulus
B) It specifically depletes B-cells producing pathogenic anti-PLA2R antibodies
C) It reduces complement activation more effectively than other agents
D) It has concurrent diuretic properties
Correct Answer: B
Precision Therapy: Rituximab (anti-CD20) targets the specific pathophysiology of anti-PLA2R positive membranous nephropathy by depleting B-cells that produce the disease-causing antibodies. This precision approach leads to faster and more durable proteinuria reduction compared to broad immunosuppression, resulting in more effective long-term edema control through albumin recovery.
๐Ÿ“š Reference: Precision Immunotherapy

Case Reflection & Multi-Module Integration

๐Ÿ’ง Edema Module Integration

  • Differential diagnosis of bilateral edema
  • Clinical clues distinguishing cardiac vs renal causes
  • Importance of facial/periorbital edema as renal indicator
Review Complete Module

๐Ÿงช Urinalysis Module Integration

  • Dipstick proteinuria as screening tool
  • Hyaline casts indicating concentrated urine
  • Quantitative proteinuria measurement
Review Supporting Module

๐Ÿšจ AKI Module Integration

  • Prerenal azotemia from over-diuresis
  • BUN:creatinine ratio interpretation
  • Urine sediment in prerenal AKI
Review AKI Recognition

๐Ÿ”ฌ Glomerular Disease Integration

  • Nephrotic syndrome criteria and presentation
  • Membranous nephropathy as leading cause in older adults
  • Anti-PLA2R antibodies for diagnosis and monitoring
Review Glomerular Module

๐ŸŽฏ Key Integration Concepts

This case demonstrates how apparent "treatment-resistant" conditions may actually represent misdiagnosis. The integration of basic laboratory understanding (BMP limitations), clinical observation skills (facial edema), and systematic diagnostic thinking (urinalysis in all edema patients) prevents potentially harmful delays in diagnosis. It emphasizes that common symptoms like edema require systematic evaluation rather than assumptions based on initial impressions.

๐Ÿ“ Case Summary & Clinical Pearls

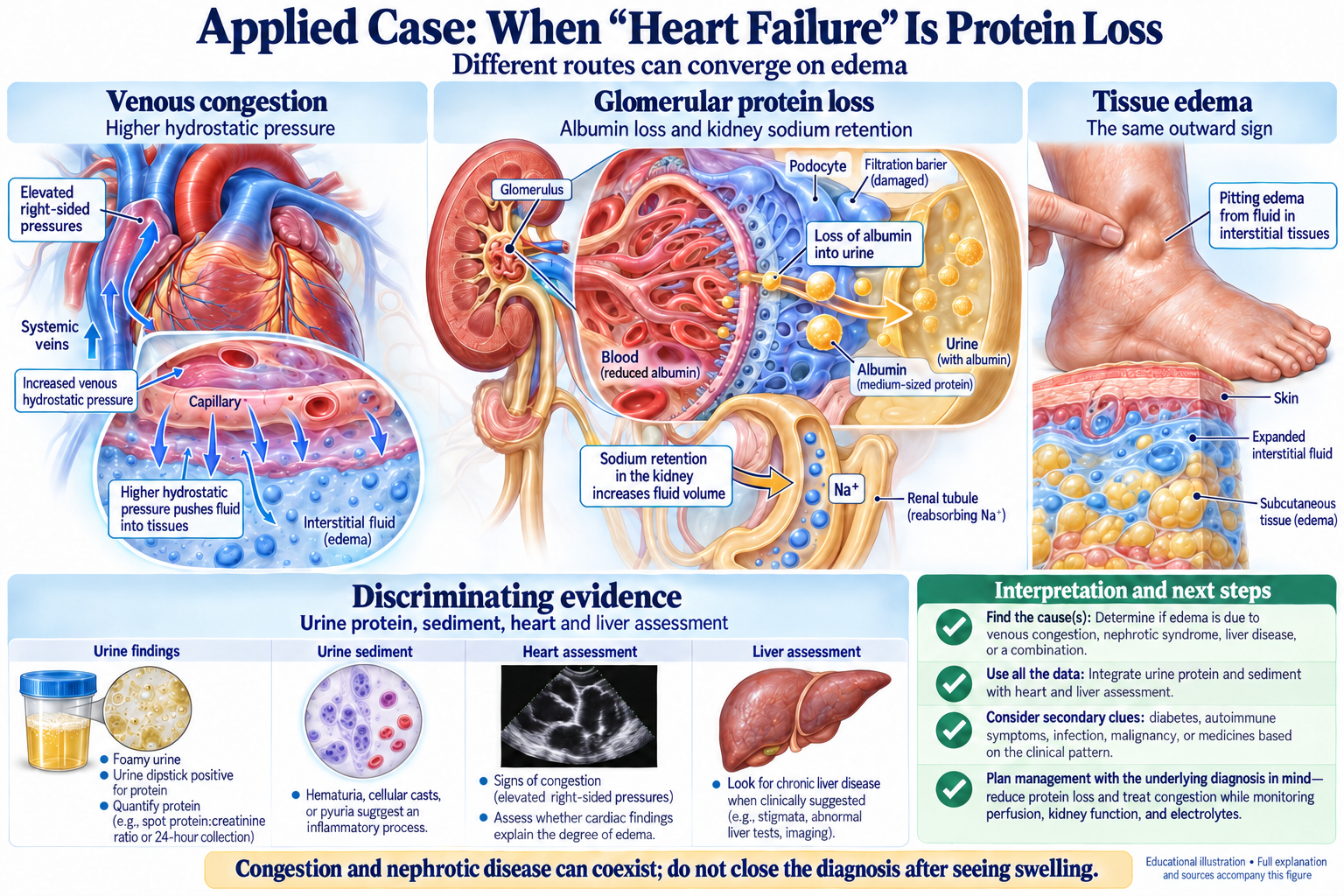

This case illustrates a common clinical scenario where nephrotic syndrome masquerades as "resistant heart failure." The patient's edema was mistakenly attributed to cardiac disease, leading to aggressive diuretic therapy and iatrogenic AKI. Key learning points include the critical importance of checking albumin (not included in BMP), recognizing facial edema as a renal red flag, and understanding that massive proteinuria with concurrent AKI suggests both underlying glomerular disease and over-diuresis. The case emphasizes systematic evaluation over assumption-based treatment.

๐Ÿ”‘ Key Clinical Pearls from This Case:

  • BMP Limitation Pearl: The basic metabolic panel does NOT include albumin - order it separately in edema patients
  • Facial Edema Pearl: Morning periorbital puffiness is a red flag for hypoproteinemic (renal) rather than cardiac edema
  • Urinalysis Pearl: Always check urinalysis in unexplained edema - dipstick proteinuria โ‰ฅ2+ suggests nephrotic syndrome
  • Dual Pathology Pearl: Patients can have both nephrotic syndrome AND iatrogenic AKI from over-diuresis for presumed heart failure
  • Age-Related Pearl: Membranous nephropathy is the most common cause of nephrotic syndrome in adults >50 years

๐ŸŽ“ Ready for the Next Challenge?

โ† Previous Case โ†’ Next Case ๐Ÿ“‹ All Cases

๐Ÿ“š For Educational Purposes Only - Case-Based Learning Module

ยฉ 2025 Andrew Bland MD - All Rights Reserved
